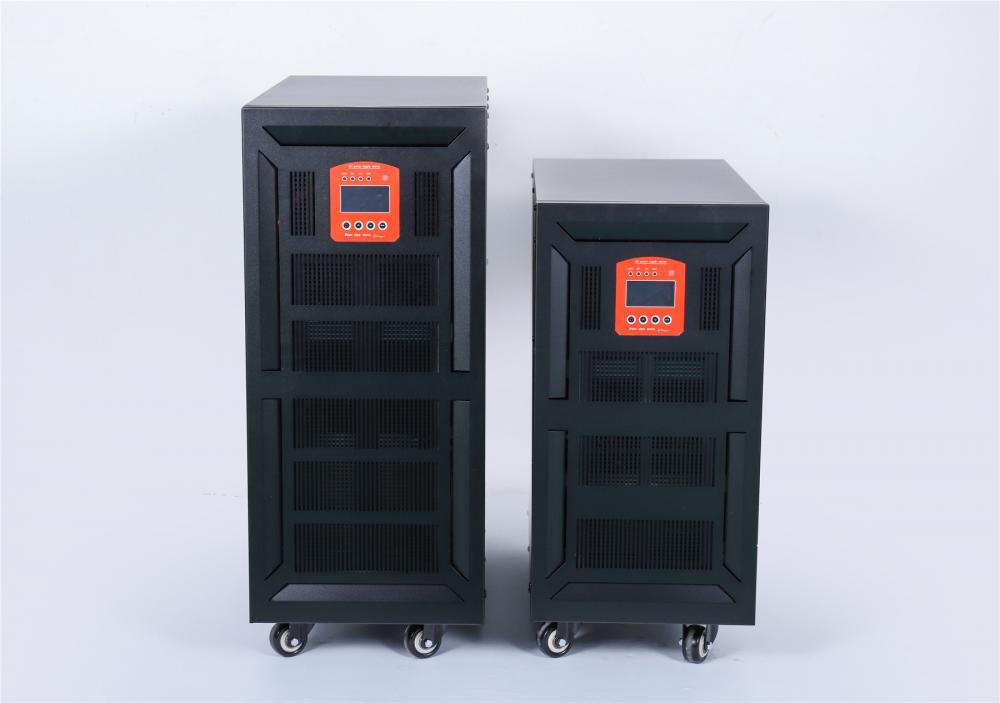

8 kVte-100a off-grid günəş inverter ilə mppt şarj nəzarətçisi

MODEL

HM7kW Pro

HM8kW

HM10kW

TECHNICAL

BATTERY

Rated voltage

48V/96Vdc

60/96Vdc

Charging voltage

13.8V/27.6V/55.2V

27.6V/55.2V/110V

Charging current

10~25A

Charging voltage

55.2Vdc for 48Vdc (*5 for 60Vdc; *8 for 48V, *8 for 96Vdc) battery

Battery high voltage alarm

60Vdc for 12Vdc (*5 for 48Vdc, *8 for 96Vdc) battery

Battery low voltage alarm

42Vdc for 12Vdc (*5 for 48Vdc, *8 for 96Vdc) battery

Battery type

Lithium / gel battery (factory default)

GRID INPUT

Voltage

L+N+PE, 220V/230V/240Vac

Voltage range

75~135Vac for 110Vac grid; 145-265Vac for 220Vac grid

Frequency

50/60Hz (auto-sensing)

PV INPUT

MPPT optimal voltage

48V: 60~150Vdc; 60V: 80~220Vdc; 96V: 120~220Vdc

MPPT working voltage range

18~150Vdc for 12V/24V/48V; 120~180Vdc for 96V

Charging current

MPPT 60A/100A

Maximum PV array power

For 60A MPPT: 48V/3200W, 60V/4800W, 96V/6000W

For 100A MPPT: 48V/5000W, 60V/6000W, 96V/10000W

Maximum PV array voltage

For 48V: 155Vdc; for 60V: 225Vdc; for 96V: 226Vdc

OUTPUT

Voltage

L+N+PE, 110V/120V; 220V/230V/240Vac

Frequency

50/60Hz ±1% (auto-adaptation)

Surge power

9kVA

12kVA

15kVA

18kVA

21kVA

Efficiency

89%

                       90%

89%

Waveform

Pure sine wave

Protection

Overvoltage, under voltage, overload, over temperature, surge, short circuit

Display

LCD+LED

Heat dissipation mode

Fan

Communication (optional)

RS232/RS485/App/Wi-Fi

WORKING MODE

Grid prior

Working priority is given to grid power, and transfers to battery inverter when grid is abnormal

Eco mode

The device automatically goes into sleep mode when the load is empty

PV prior

PV first, and when PV is not sufficient, battery and grid complement each other

Environmental

Humidity

0%~95% relative humidity (non-condensing)

Operating temperature

-10 ~ 50°C

Storage temperature

-15 ~ 60°C

PHYSICA.

Dimension (D*W*H) (mm)

650x380x800

Net weight

55

63

72
